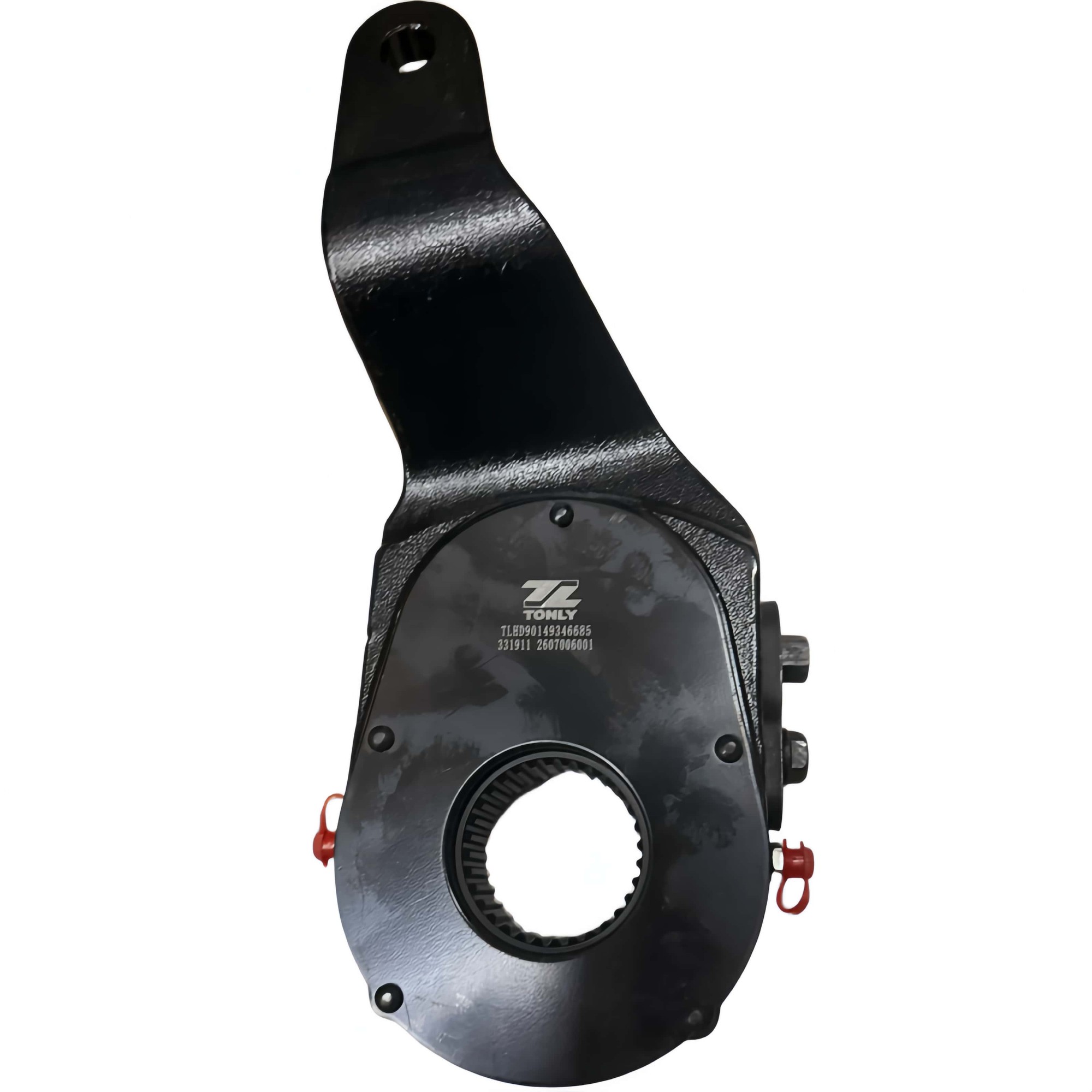

HD90149346685 — HanDe 50T Rear Brake Adjuster (Left, 32-Tooth)

INQUIRY

Product Details

Product Tags

The HD90149346685 is a heavy-duty rear brake adjuster engineered for HanDe 50T-series drive axles used on wide-body mining trucks and large-capacity engineering vehicles. It maintains correct brake-shoe-to-drum clearance automatically as lining wears, helping preserve consistent brake balance, shorten chamber stroke, and reduce unplanned downtime on demanding haul roads.

Part of the HanDe 50T adjuster family (related references: HD90149346683 / HD90149346684 / HD90149346686 — different left/right and tooth specifications), this unit is intended for rear drive-axle, left-side installation. Always confirm fitment by old-part stamp, axle nameplate, camshaft spline and mounting geometry before ordering.

Key Specifications

Part Number (OEM)	HD90149346685
Product Name	Rear Brake Adjuster / Slack Adjuster (Gap Adjuster)
Brand / System	HanDe (Shaanxi HanDe Axle) — Genuine OEM
Axle Application	HanDe 50T-class rear drive axle (wide-body / mining specification)
Position	Rear axle, Left (driver-side / as per axle orientation)
Tooth / Drive Spec	32-Tooth (verify at order: camshaft spline tooth count vs. worm-gear tooth count)
Brake Type	S-cam drum brake system
Adjuster Type	Automatic gap adjuster (typical for HanDe 50T series; confirm by old-part label)
Material / Finish	Forged / cast steel alloy, anti-corrosion finish (OE specification)
Packaging	Genuine HanDe original packaging; part-number label for traceability
Country of Origin	China (HanDe OEM supply chain)
HS Reference	870830 / 870899 (confirm with customs broker for destination)

Mounting & Fitment Checklist

Clevis / mounting style	Confirm clevis-pin diameter, hole pitch and bracket clearance vs. old adjuster
Arm length	Measure old adjuster arm length; match to chamber stroke and brake geometry
Camshaft spline	32-tooth verification; check spline outer diameter and camshaft orientation
Left / Right	Left-side rear axle fitment; do not mirror-fit without technical confirmation
Control arm / bracket	Confirm control-arm anchor point and dust-boot orientation (automatic type)

Fitment responsibility: HanDe axle specifications may vary by production batch, vehicle model year and axle code. The purchaser must confirm the old-part stamp, axle nameplate and camshaft data. Images are for reference; supplied product is matched by OEM part number HD90149346685.

Compatibility & Related Parts

Primary application: HanDe 50T-class rear drive axle on wide-body mining trucks and heavy engineering vehicles.
Same-family references: HD90149346683 / HD90149346684 / HD90149346686 (50T adjuster series — different left/right & tooth configurations; not cross-interchangeable without verification).
Bundle with: rear brake drum, brake shoe assembly, brake backing plate, rear wheel hub, middle-axle camshaft, leaf-spring bracket and wheel-end bearing/seal kits for a complete rear-axle brake overhaul.
One-stop sourcing: Shacman chassis, Weichai engine and Fast (Fabst) transmission parts available on consolidated orders.

Technical FAQ

Is HD90149346685 an automatic adjuster?

HanDe 50T-series adjusters are commonly supplied as automatic gap adjusters; however, the exact automatic / manual type for this specific number must be verified from the old-part label. We do not substitute type without customer confirmation.

What does "32-tooth" mean?

It refers to the tooth/drive specification used to match the camshaft spline or internal worm-gear interface. Clarify with our team whether the 32 teeth are camshaft spline teeth or worm-gear teeth before ordering.

Can I install a right-side unit on the left side?

Not recommended. Left and right adjusters have dedicated part numbers and mounting orientation. Always replace with the correct left-side HD90149346685 or its confirmed equivalent.
