TONLY TL885A HD90149446006 Brake Friction Plate

INQUIRY

Product Details

Product Tags

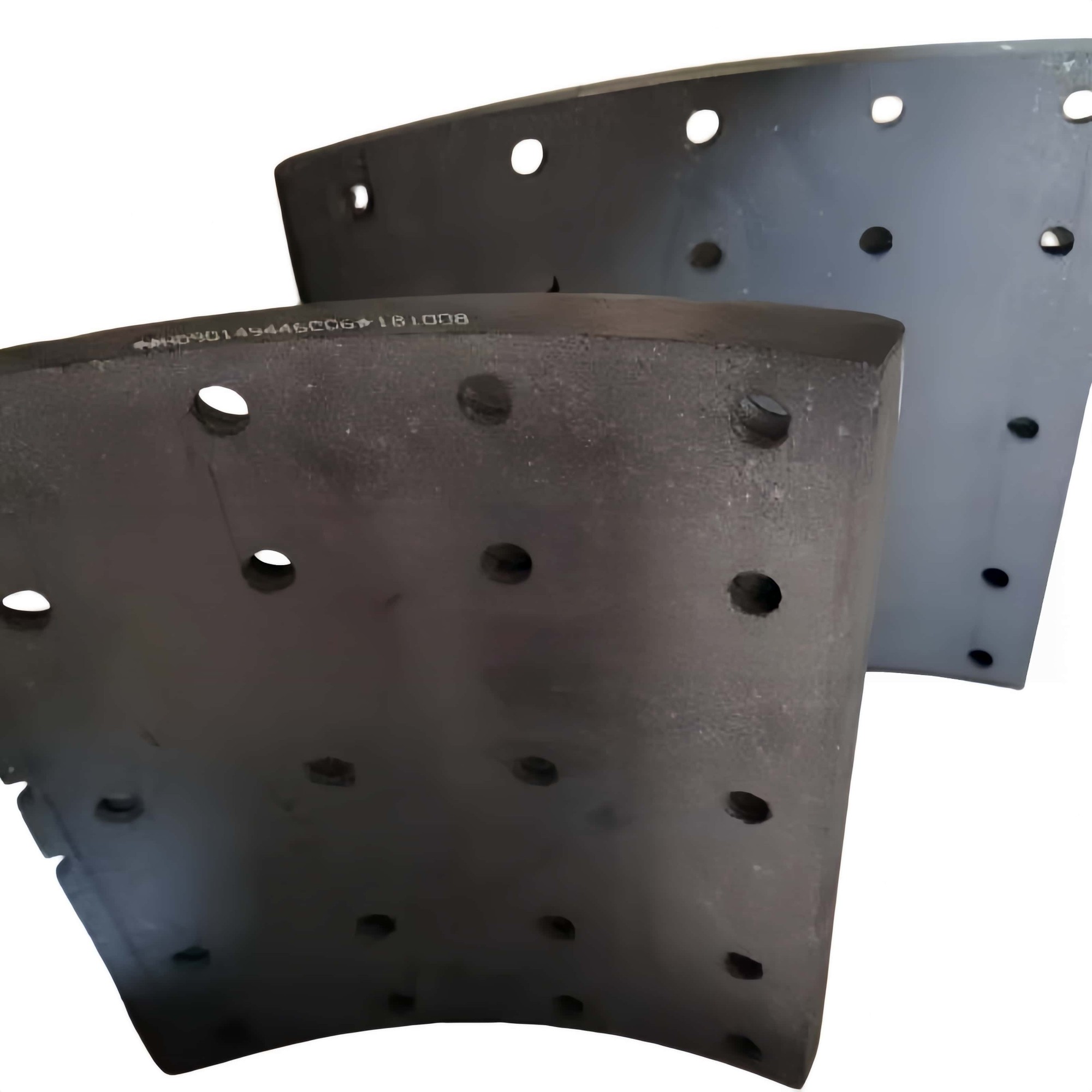

Product Name: Brake Friction Plate (Lower) / Brake Lining (Lower)

Part Number (OE): HD90149446006

Brand: Hande Axle (HANDE) Original / OEM Quality

System: Drum Brake System — Brake Shoe Assembly

Position: Lower friction plate within brake shoe assembly (paired with HD90149446005 upper plate)

Key Specifications

Item	Description
OE / Part No.	HD90149446006
Product Type	Brake friction plate / brake lining (lower position)
Function	Friction surface of the brake shoe; generates braking force through contact with the inner drum surface
Compatible Models	TONLY TL885A (confirmed via brake shoe assembly HD90149446007) ; also used on TONLY 875B / 883 / 885 and LGMG MT86 / MT86H / MT95 / MT96L equipped with Hande axles
Axle Type	Hande HDZ series heavy-duty axle (mining truck application)
Qty per Brake Shoe	4 pieces (HD90149446006 lower) + 4 pieces (HD90149446005 upper)
Material	High-temperature resistant friction material, heat-treated for mining-duty cycles
Quality Standard	OEM-spec, interchangeable with genuine Hande / TONLY parts
MOQ	1 Set (recommended to replace in complete sets per axle)

Product Description (for listing / catalogue)

The HD90149446006 Brake Friction Plate (Lower) is a heavy-duty brake lining engineered for the Hande axle drum brake system used on TONLY TL885A and other wide-body mining dump trucks. Working in pairs with the upper friction plate HD90149446005, it forms the friction surface of the brake shoe assembly (HD90149446007), generating the braking force required to stop trucks carrying 70+ ton payloads in demanding open-pit mining conditions.

Manufactured to OEM specifications with high-temperature-resistant friction material and heat-treated bonding, these plates are built to withstand the extreme thermal and mechanical stress of repeated heavy-load braking cycles. When replacing, it is strongly recommended to replace all friction plates on the same axle simultaneously (both HD90149446005 upper and HD90149446006 lower, 4 pieces each per brake shoe) to ensure even wear and consistent braking performance.

Essential wear-part inventory for mining truck fleets, overseas repair workshops, and parts distributors serving Central Asia, Russia, Mongolia, Africa, and Southeast Asia mining markets.

Compatibility & Verification Note (IMPORTANT for overseas buyers)

✅ Confirmed application: TONLY TL885A (via brake shoe assembly HD90149446007) .
✅ Extended fit: TONLY 875B / 883 / 885, LGMG MT86 / MT86H / MT95 / MT96L — all equipped with Hande HDZ-series axles .
⚠️ Must be replaced as a set: HD90149446006 (lower) is always paired with HD90149446005 (upper). Never replace only one position — always replace all 4 upper + 4 lower plates per brake shoe to maintain balanced braking.
⚠️ Full assembly option: If the entire brake shoe assembly needs replacement, order HD90149446007 Brake Shoe Assembly which includes all sub-components.
